特點：
1、轉盤上給每個沖�？自黾恿藳_模導向套，以增加轉盤和沖模的使用壽命，且導向套為含油材料，增加潤滑性，并在磨損后可以 方便的更換沖模導向套，避免更換轉盤。
2、遠程控制，人機隔離，安全生產。充填、片厚調節裝置由伺服電機驅動蝸輪蝸桿調節，增加了調節的準確性。
3、具備壓力檢測選項。檢測主壓力。
4、具備集成微型攝像頭、防爆攝像頭選項。人員可在房間外觀察設備。
5、觸摸輸入，操作簡單可靠且故障自動報警停機，并可以查詢。
6、智能集中潤滑系統，可根據具體情況在智能集中潤滑系統上設定加潤滑油的時間間隔,并自動加油。保障各潤滑點得到充分潤滑。
7、防爆電氣控制柜獨立在機器的外部。遠離設備，杜絕危險。
1. A die guide sleeve has been added to each die hole on the turntable to increase the service life of the turntable and die. The guide sleeve is made of oil containing material to increase lubrication and can be easily replaced after wear, avoiding the need to replace the turntable.
2. Remote control, human-machine isolation, safe production. The filling and thickness adjustment device is driven by a servo motor to adjust the worm gear, which increases the accuracy of the adjustment.
3. Equipped with pressure detection options. Detect the main pressure.
4. Equipped with integrated micro camera and explosion-proof camera options. Personnel can observe the equipment outside the room.
5. Touch input, simple and reliable operation, automatic fault alarm and shutdown, and can be queried.
6. The intelligent centralized lubrication system can set the time interval for adding lubricating oil on the intelligent centralized lubrication system according to specific situations and automatically add oil. Ensure that all lubrication points receive sufficient lubrication.
7. The explosion-proof electrical control cabinet is independent of the outside of the machine. Stay away from equipment and eliminate danger.

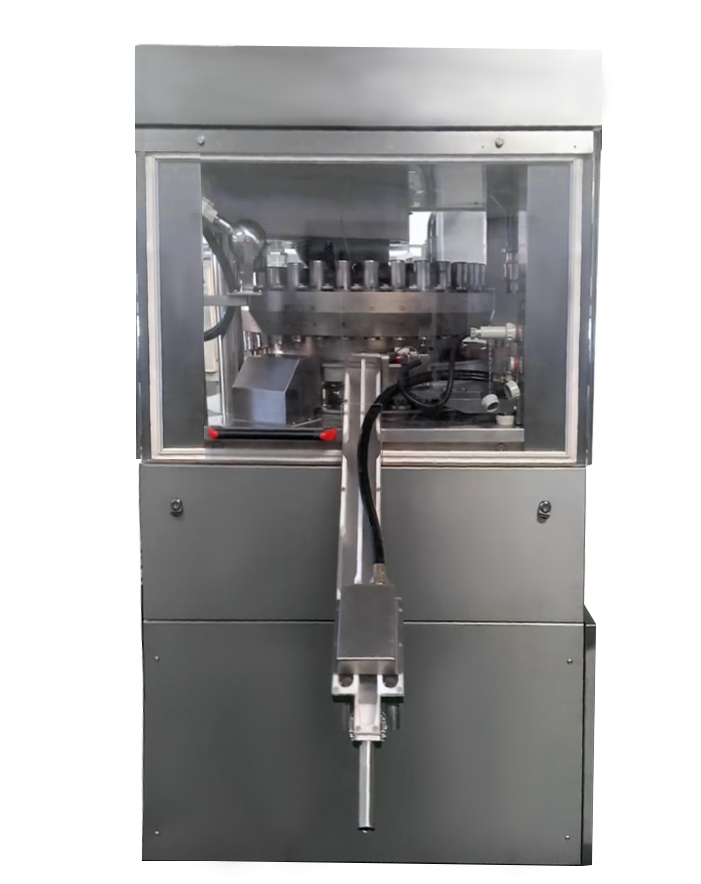

型號 Product model | ZPFBYH31 |
沖模數 Number of stations | 31 |
上下沖身直徑 Upper and lower punch diameter | mm | Φ48 |
上沖桿總長 Upper punch rod length | mm | 227 |
下沖桿總長 Lower punch rod length | mm | 240 |
中模直徑 Diameter of die | mm | Φ48 |
中模高度 Middle die height | mm | 58 |
產量 Max Output | tablets/hour | 18600 |
壓片直徑 Max tablet diameter | mm | 50 |
充填深度 Max filling depth | mm | 50 |
片厚 Tablet thickness | mm | 3-15 |
壓力 Max main pressure | kN | 300 |
預壓力 Max pre-pressure | kN | 300 |
主電機功率 Main motor power | kW | 18.5 |
外形尺寸（長×寬）Dimension(Length×width) | mm | 1436*1880 |
機器高度 Height | mm | 2273 |
機器重量 Weight | kg | 約5700 |
注：表中產量為理論轉速時的產量，實際生產中由于顆粒狀態、片劑壓力、片劑直徑厚度等諸多因素會影響產量。
Note: The maximum output in the table is the output at the theoretical maximum rotation speed. In actual production, many factors such as particle state, tablet pressure, tablet diameter and thickness will affect the output.
