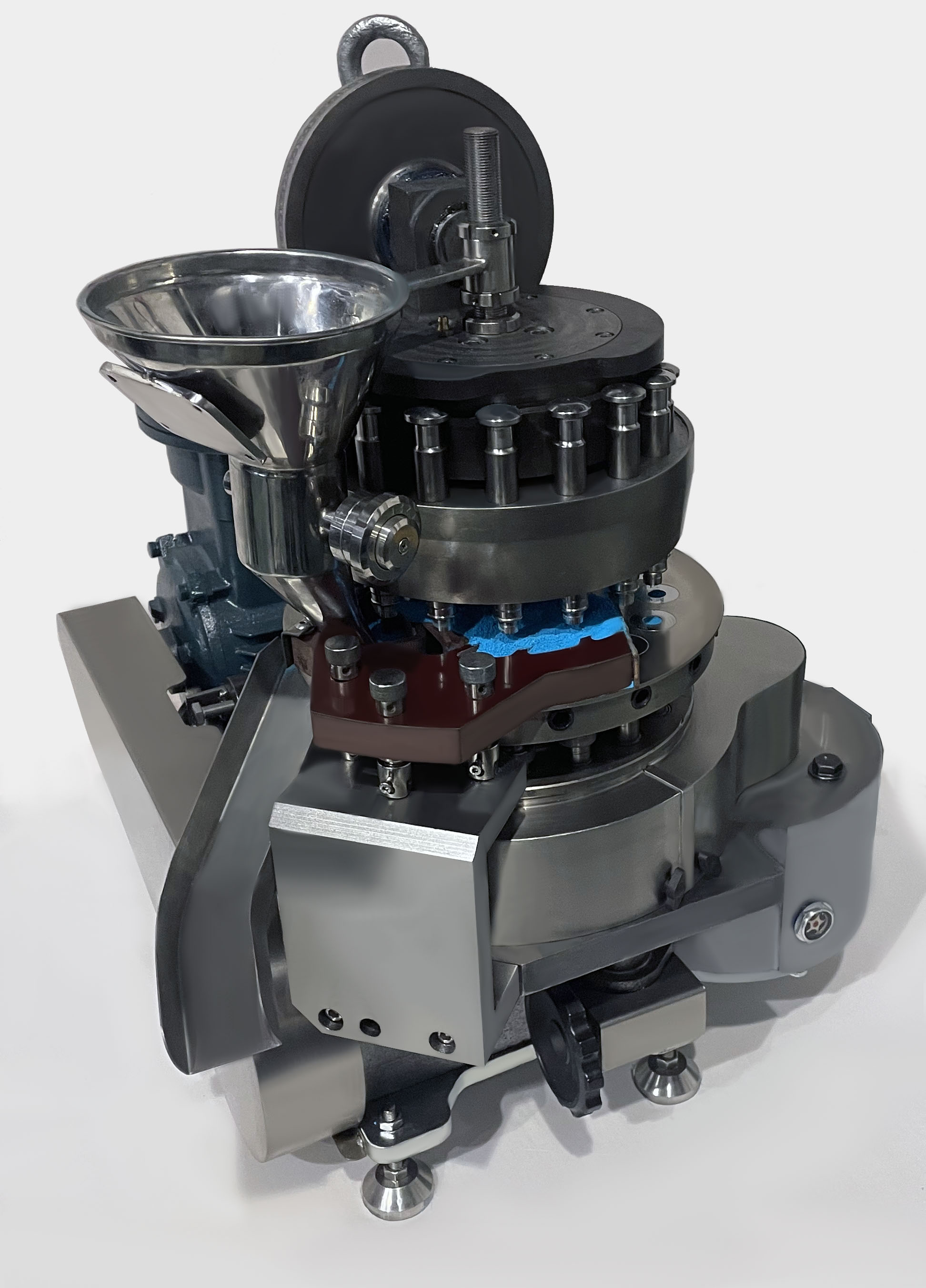

特點：
1、設備體積小巧，重量輕，且功能齊全。
2、轉臺表面經特殊處理，耐磨耐腐蝕，不易生銹。
3、本機采用柵格式加料機構，能使物料均勻地充滿�？祝瑴p少片重差異。
4、壓力調節系統配有過載保護裝置，有效保護沖桿。
5、易損部件下沖軌導拆卸簡單快捷。
1. The device is compact in size, lightweight, and fully functional.
2. The surface of the turntable has been specially treated to be wear-resistant, corrosion-resistant, and not easily rusted.
3. This machine adopts a grid feeding mechanism, which can evenly fill the mold holes with materials and reduce the difference in sheet weight.
4. The pressure regulation system is equipped with an overload protection device to effectively protect the punch rod.
5. The disassembly of the vulnerable parts under the punch rail guide is simple and fast.
型號 Product model | ZPFBW16 |
沖模數 Number of stations | 16 |
上下沖桿桿身直徑 Upper and lower punch diameter | mm | 19 |
上下沖桿長度 Upper and Lower punch rod length | mm | 133.6 |
中模直徑 Diameter of die | mm | 30.16 |
中模高度 Middle die height | mm | 22.22 |
產量（圓片） Max Output（Round tablet） | tablets/hour | 12400 |
壓片直徑
Max tablet diameter | mm | 15 |
充填深度 Max filling | mm | 20 |
壓片厚度 Max tablet thickness | mm | 10 |
壓片力 Max pressure | kN | 50 |
轉臺轉速 Rotation speed range | r/min | 5~13 |
電機 Main motor power | kW | 1.5 |
主機重量 Weight | kg | 300 |
外形尺寸 Dimension | mm | 750×572×684 |
注：表中產量為理論轉速時的產量，實際生產中由于顆粒狀態、片劑壓力、片劑直徑厚度等諸多因素會影響產量。
Note: The maximum output in the table is the output at the theoretical maximum rotation speed. In actual production, many factors such as particle state, tablet pressure, tablet diameter and thickness will affect the output.
